High Quality Dump Trucks, Semi Trailers, Tank Trailers, Liquid Tanks, Tractor Heads, Excavators, Wheel Loaders, Semi Trailers, Bulldozers, Road Rollers and Graders, etc.
4 Years
| Ask Lasest Price | |
| Brand Name : | Hitachi |
| Model Number : | Ex60 |
| Price : | USD6000-20000 |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 30 Sets/Per month |
| Delivery Time : | 8-15 days |
Cheap Excavators Hitachi Ex90 Excavators Ex60 Used Excavators Crawler Excavators
Specifications:
| Bucket | |
| Maximum Bucket Capacity | 0.5 cu yds (0 m) |
| Minimum Bucket Capacity | 0.2 cu yds (0 m) |
| Reference Bucket Capacity | 0.4 cu yds (0 m) |
| Dimensions | |
| Ground Clearance | 1.2 ft (0 m) |
| Height - Top of Cab | 8.5 ft (3 m) |
| Removal Counterweight Clearance | 2.5 ft (1 m) |
| Tail Swing Radius | 5.8 ft (2 m) |
| Width to Outside of Tracks | 7.3 ft (2 m) |

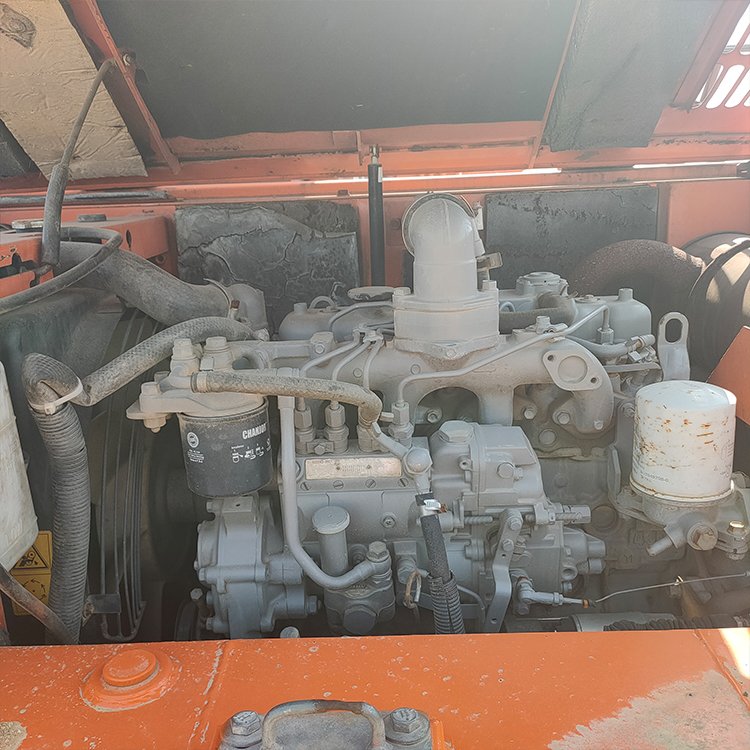

| Engine | |
| Aspiration | Natural |
| Displacement | 180.3 cu in (0 m) |
| Engine Make | 2311 |
| Engine Model | A-BD30 |
| Max Torque | 133.5 lbs/ft |
| Net Power | 54 hp (40 kw) |
| Power Measured @ | 2200 rpm |
| Torque Measured @ | 1500 rpm |
| Operating Specifications | |
| Alternator Supplied Amperage | 25 A |
| Cooling System Fluid Capacity | 2.7 gal (10 l) |
| Engine Oil Capacity | 3.4 gal (13 l) |
| Fuel Capacity | 9.5 gal (36 l) |
| Hydraulic Pump Flow Capacity | 41.9 gal/min (159 l/min) |
| Hydraulic System Fluid Capacity | 23.8 gal (90 l) |
| Hydraulic System Relief Valve Pressure | 4550 psi |
| Operating Voltage | 12 V |
| Operating Weight | 13889.2 lbs (6,300 kg) |
| Swing Drive Fluid Capacity | 0.5 gal (2 l) |
| Swing Mechanism | |
| Swing Speed | 14.5 rpm |
| Undercarriage | |
| Ground Pressure | 4.3 psi |
| Max Travel Speed | 3 mph (5 kph) |
| Number of Carrier Rollers per Side | 1 |
| Number of Shoes per Side | 37 |
| Number of Track Rollers per Side | 5 |
| Shoe Size | 17.8 in (45 cm) |
| Track Gauge | 5.8 ft (2 m) |
We are specialized in exporting second hand excavators, bulldozers, cranes, loaders, graders, road rollers, forklift, trucks and buses we deliver to our customer is in high quality, excellent working conditions. If you need, we can provide renovation services.
Our main products:
| Second Hand Excavators | Komatsu: PC18, PC20, PC30, PC35, PC55, PC56, PC60, PC70, PC78, PC100, PC120, PC128, PC130, PC138, PC160, PC200, PC210, PC220, PC230, PC240, PC270, PC300, PC350, PC360, PC400, PC450, PC490 CAT: 301, 302, 303, 305, 306, 307, 308, 312, 313, 315, 318, 320,
321, 323, 324, 325, 326, 329, 330, 336, 340, 345, 349(From B to D),
E70, E120, E200, E300, |
| Second Hand Trucks | Dump truck: Howo, Isuzu, Hino, Benz, Volvo, Mitsubishi, Nissan Pump truck: Putzmeister , Zoomlion, Benz |
| Second Hand Loaders | CAT: 910, 936, 938, 950, 962, 966, 972, 980(From C to H) Komatsu: WA300, WA320, WA350, WA380, WA400, WA420, WA450, WA470, WA500 Kawasaki: 70Z, 75Z, 80Z, 85Z, 90Z SDLG: LG936, LG953, LG956 |
| Second Hand Bulldozers | CAT: D3, D4, D5, D6, D7, D8, D9, D10(From B to R) Komatsu: D41, D60, D65, D85, D155 |
| Second Hand Graders | CAT: 12G, 14G, 16G, 12H, 14H, 120G, 140G, 140H, 140K Komatsu: GD511A, GD623A |
| Second Hand Road Rollers | Dynapac: CA25, CA35, CA30, CA251, CA301, CA302, CA602, CC211,
CC421, CC522, CC622 Bomag: BW202, BW203, BW213, BW214, BW215, BW217, BW219, BW226 Ingersollrand: SD100, SD150 |
| Second Hand backhoes Loader | JCB: 3CX, 4CX CAT: 416E, 420E, 420F, 430E, 430F CASE: 580M, 580L |
| Second Hand Forklifts | Heli, Mitsubishi, TCM, Toyota, Komatsu, Hyster, Kalmar(1.5-45 ton) |
| Second Hand Trailer Heads | Howo, Volvo, Beiben |
| Second Hand Skid Steer Loaders | S150, S300, S250, S185, S18 CASE: 440H |
| Second Hand Truck Cranes | Kato: NK250E, NK350E, NK400E-3, NK500E, NK550E Tadano: TL250E, TL300E, TG500E, TG550E, TG650E Zoomlion: QY25, QY50, QY70 |
| Second Hand Crawler Cranes | Kobelco: 7045 50T, 7055 55T, 5100 100T, 7150 150T Hitachi: KH125 35T, KH180 50T, KH700 150T |
If you need, we can provide renovation service as per your requests.
Shipping:
FAQ:
Q: How is the quality of the machine deliver to your country?
A : All the machine we deliver to our customer is in high quality
and excellent performance.
Q: What is your terms of payment ?
A: Equipment prepayment 30%, balance payment before shipment.
Q: What is your Loading port?
A:Shanghai, Ningbo, Qingdao.
Q: What is your best price?
A:We are direct factory, we will offer you competitive price.
Welcome you to China for face-to-face negotiations. We will pick you up at airport.
|
|
